Circularly Polarized Active GPS Ceramic Patch Antenna

1561.098MHz,3.57dBi, 25*25*8.7mm,Frequency:64.87%

Embedded

Model：AIGC022

PN：M04-0103730R0A

Technology Type:GPS/BDS/GLONASS

Mounting Style:Pin/Adhesive

Freq. (MHz):1550-1605MHz

Antenna Connector Type:IPEX 1

Download

Quote

Related Parts and Tools

Product Specifications

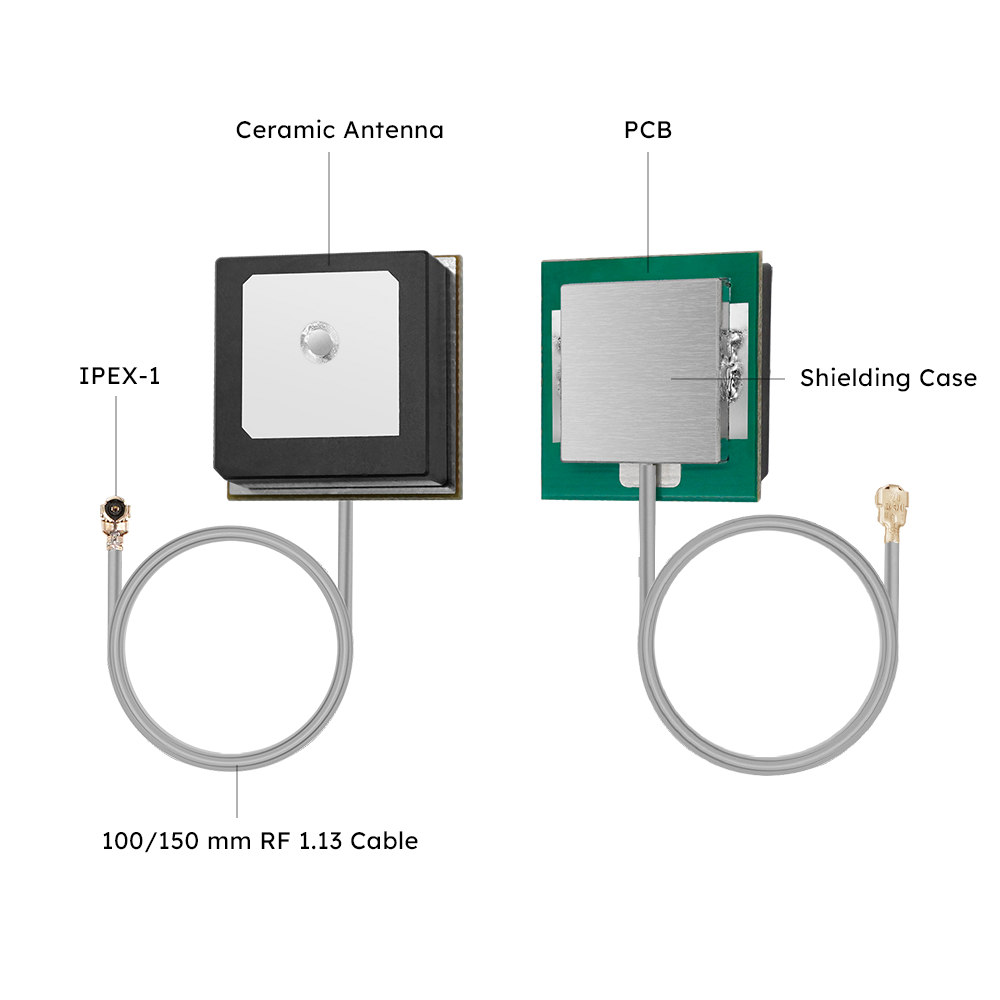

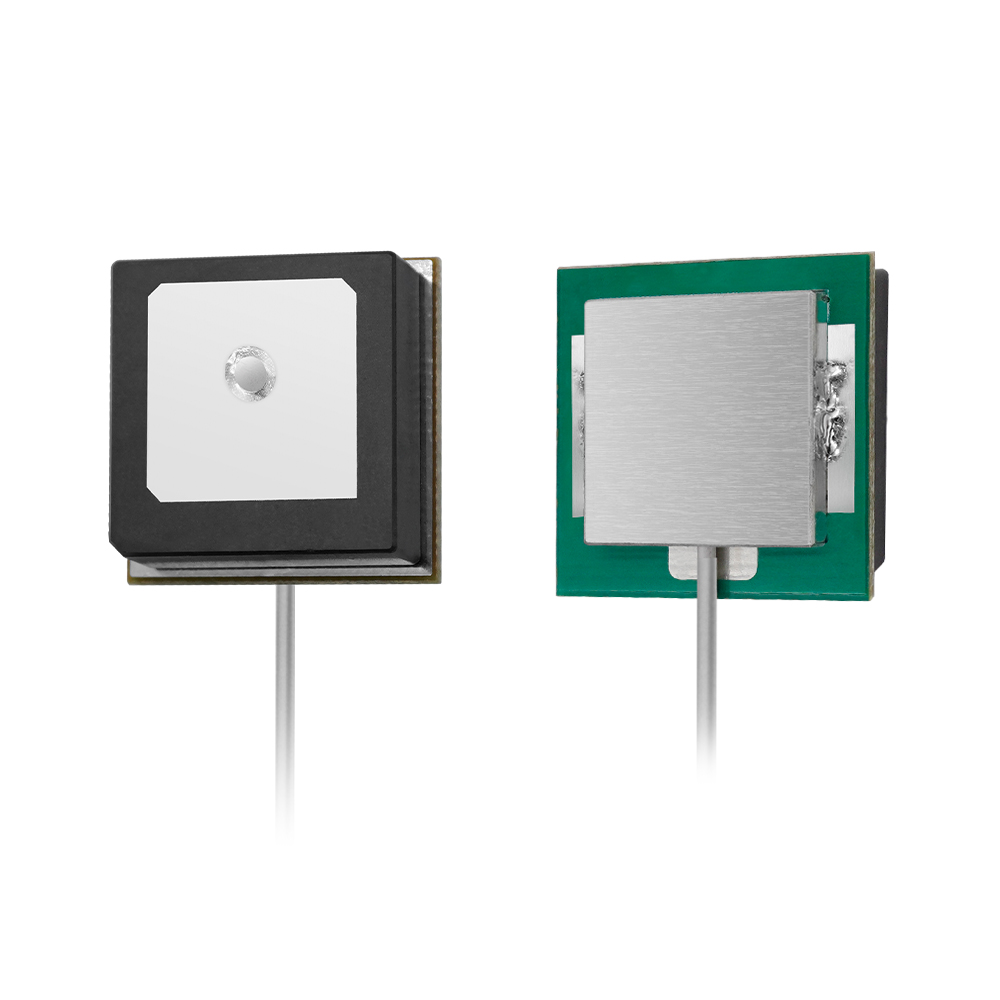

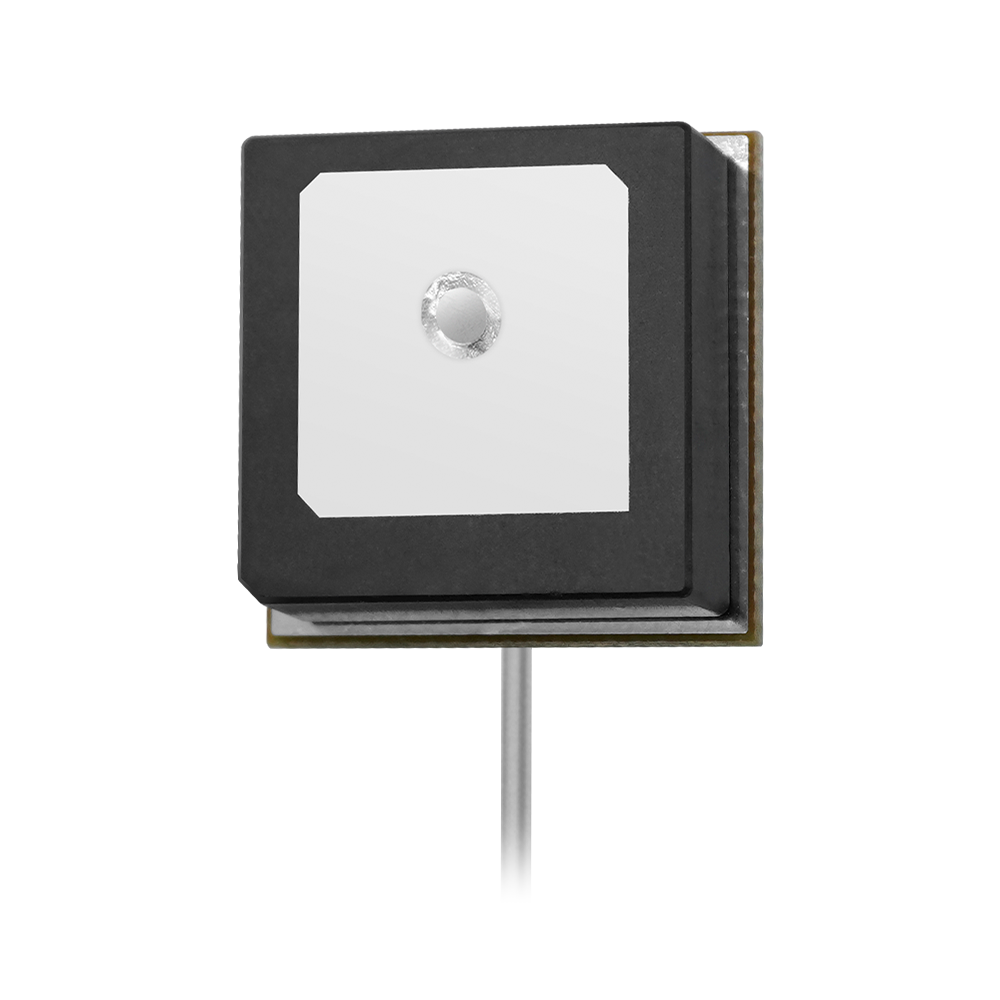

Active GPS ceramic patch antenna

Get It Now

English version
Product Specifications

Active GPS Ceramic Patch Antenna Drawing

Get It Now

English version
Certificates Acquired

RoHS Compliant

Compliant

Chinese version
ISO 9001 Certification

ISO 9001

Check Now

Chinese and English versions
IATF 16949 Certification

IATF16949

Check Now

Chinese and English versions

Please review the product documentation or contact us for the latest agency approval information. Please note: All product design activities should refer to the product drawings.

Technology Type

[GPS]|[BDS]|[GLONASS]
Freq.(MHz)

[1550-1605]
Mechanical Style
Mounting style
Antenna Type
Termination Style
Antenna Connector Type

[IPEX 1]
Connector Style

[N/A]
Ingress/Impact

[N/A]
Polarity
Certificates Acquired

[RoHS]|[Reach]
Max Effi.(%)

[-]
Peak Gain(dBi)

[27.88 dB]
Dimensions (mm)

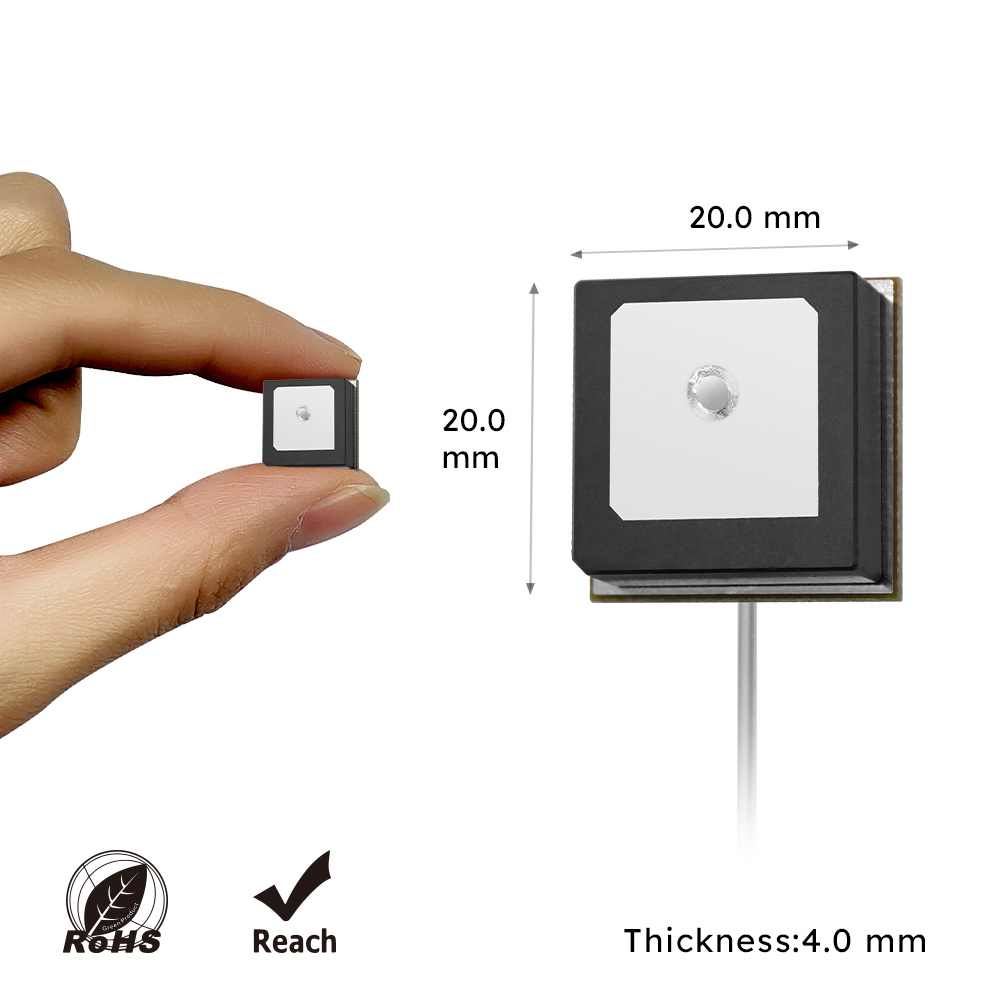

[20 x 20 x 4]
VSWR

[-]
Weight (g)

[-]
Cable Type
Cable Length (m)

[150]
Operating Temperature (℃)

[-40°C to +85°C]
Impedance(Ω)

[50]
Customization Option

EU RoHS Directive (2011/65/EU)

Compliant with applicable exemptions
Exception：
6(c) - Pb-Alloy in Copper
halogen content

Low halogen - Each homogeneous material has Br, Cl, F, I < 900 ppm. It also does not contain BFR/CFR/PVC
Welding Process Capability

The soldering process feasibility review has not yet been performed;
Compliance StatementPin/Adhesive

Compliance Statement pdf

Model	Description	PN	Note
AIGC022	Antenna with IPEX 1, 150 mm RF1.13 CableCustomization supported	M04-0103730R0A	Customization supported
AIGC023	Antenna with IPEX 1, 100 mm RF1.13 Cable	M04-0103750R0A	Customization supported
