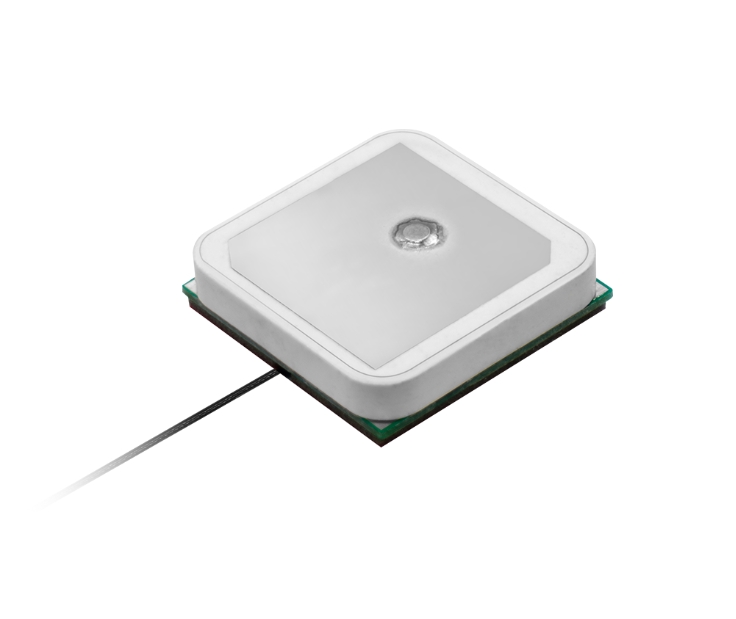

Embedded 2.4GHz Wi-Fi/Bluetooth AOA Directional Ceramic Patch Antenna

2400-2500MHz,Peak Gain:2.4 dBi,Directional,25*25*7mm,Max Effi. (%):66.16%

Embedded

Model：AIWC001

PN：M01-0601680R0A

Mounting Style:2.4G WIFI
Bluetooth
Zigbee
ISM

Mounting Style：Pin/Adhesive

Freq. (MHz)：2400-2500MHz

Antenna Connector Type :IPEX 3

Download

Quote

Related Parts and Tools

产品规格书

2.4GHz Wi-Fi蓝牙定向陶瓷贴片嵌入式天线

Embedded 2.4GHz Wi-Fi/Bluetooth Directional Ceramic Patch Antenna

立即下载
产品图纸

2.4GHz Wi-Fi蓝牙定向陶瓷贴片嵌入式天线

Embedded 2.4GHz Wi-Fi/Bluetooth Directional Ceramic Patch Antenna

立即下载
RoHS 测试报告

RoHS 测试报告

RoHS

立即查看
ISO9001认证

ISO9001认证

ISO9001

立即查看
IATF16949认证

IATF16949认证

IATF16949

立即查看

Please review the product documentation or contact us for the latest agency approval information. Please note: All product design activities should refer to the product drawings.

Technology Type

[ISM]|[2.4GWIFI]|[Bluetooth]|[Zigbee]
Freq.(MHz)

[2400-2500]
Mechanical Style
Mounting style
Antenna Type
Termination Style
Antenna Connector Type

[IPEX 3]
Connector Style
Ingress/Impact

[N/A]
Polarity
Certificates Acquired

[RoHS]|[Reach]
Max Effi.(%)

[66.16]
Peak Gain(dBi)

[2.4 dBi]

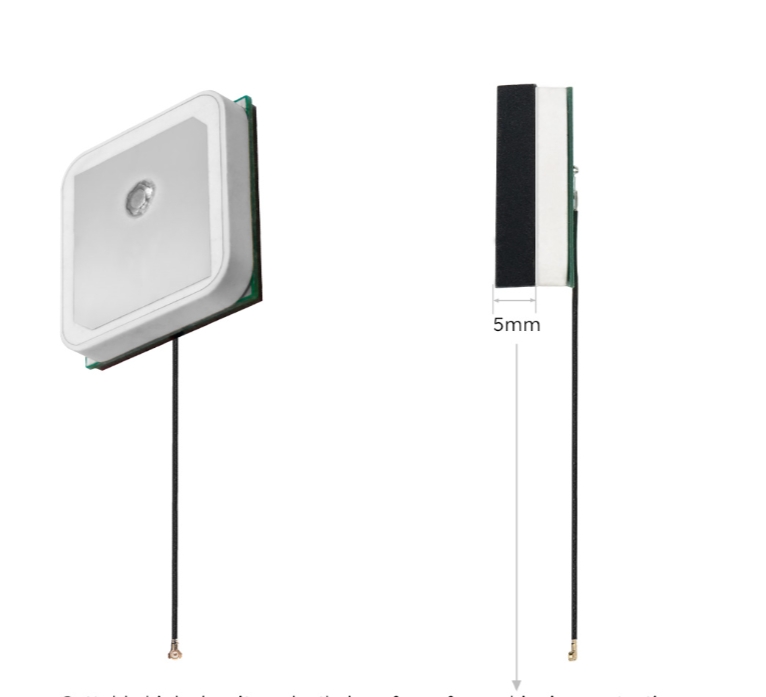

Dimensions (mm)

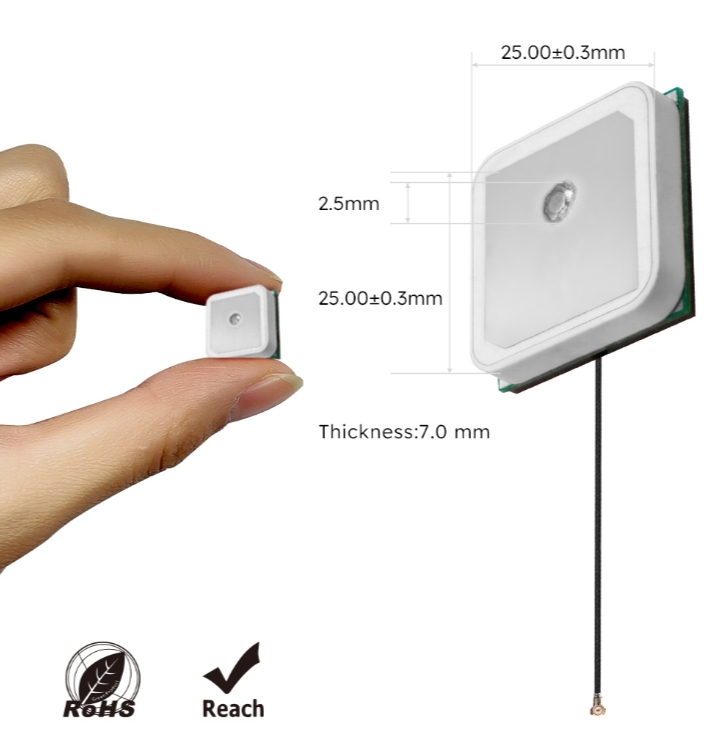

[25 x 25 x 7]
VSWR

[3.5:1]
Weight (g)

[10]
Cable Type
Cable Length (m)

[100]
Operating Temperature (℃)

[-40°C to +85°C]
Impedance(Ω)

[50]
Customization Option

EU RoHS Directive (2011/65/EU)

Compliant with applicable exemptions
Exception：
6(c) - Pb-Alloy in Copper
halogen content

Low halogen - Each homogeneous material has Br, Cl, F, I < 900 ppm. It also does not contain BFR/CFR/PVC
Welding Process Capability

The soldering process feasibility review has not yet been performed;
Compliance Statement

Compliance Statement pdf

Model	Description	PN	Note
AIWC001	25 x 25mm 2.4G WiFiCeramic Patch Antenna	M01-0601680R0A	Customization supported
